# Sign a transaction (the QR loop)

Scan the request, read the review screen, then show the signed QR.

This is the Vault's main job. The extension (or a website through it) shows a request as a QR code; the Vault reads it, shows you what it really says, and, only if you agree, signs it and hands the signature back as a QR.

## What you need

* The Vault, unlocked.
* The request QR on the other screen (from the extension's **Send**, **Swap**, a dApp, …).

{% stepper %}
{% step %}

### Tap Sign: the camera opens

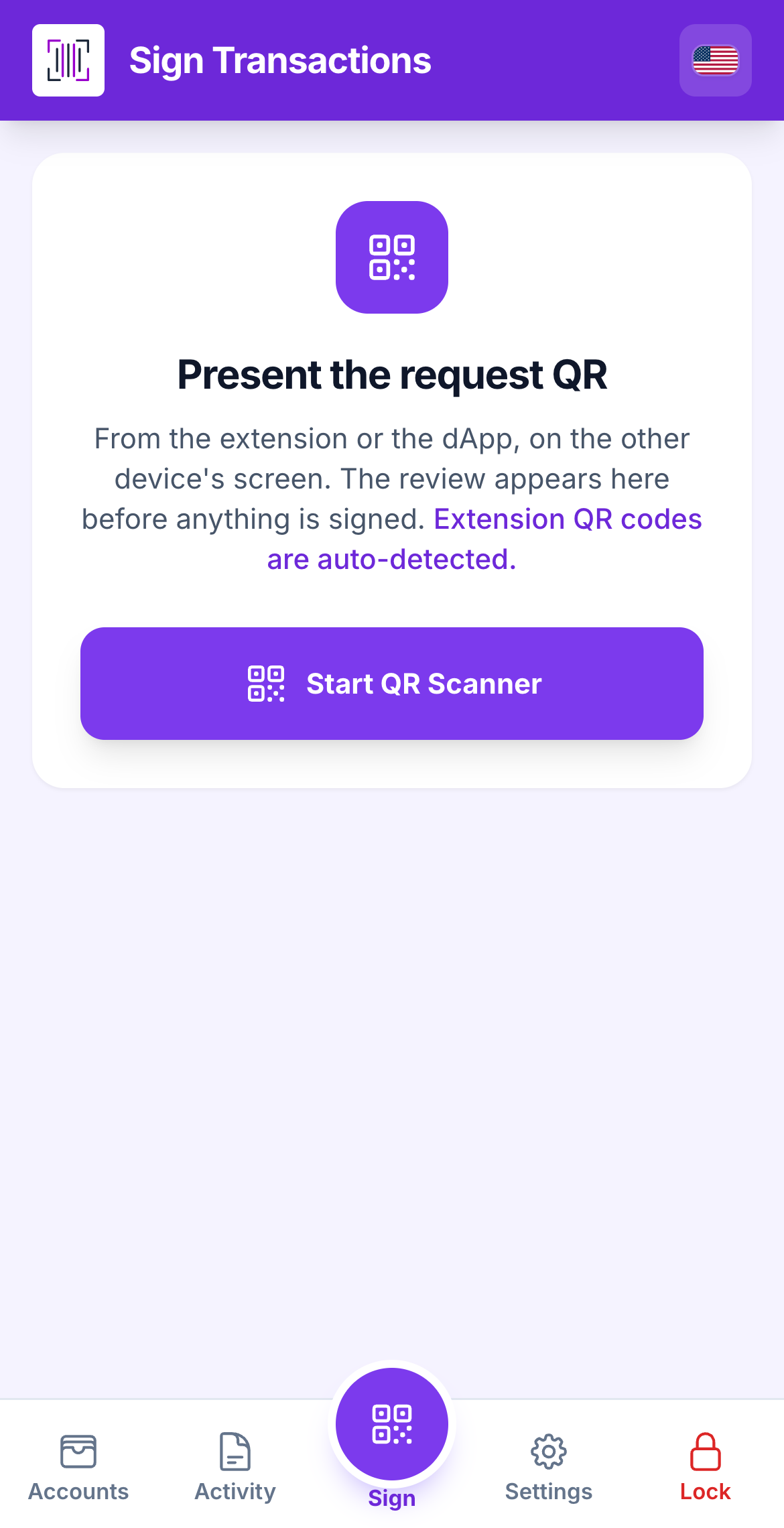

Tap the round **Sign** button in the middle of the bottom bar. The camera starts at once; there is no other button to find. Closing the camera leaves you on the Sign screen, which says **Present the request QR**: *from the extension or the dApp, on the other device's screen*, with a **Start QR Scanner** button to open it again.

<figure><img src="https://3674012151-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FT2jyfPJ4rcVavAvTU9nL%2Fuploads%2Fgit-blob-ba9844651aebbb6f5aa3481d53838e74a1ce8564%2F01-sign-tab.png?alt=media" alt="sign tab"><figcaption><p>The Sign screen, waiting for a request.</p></figcaption></figure>
{% endstep %}

{% step %}

### Scan the animated QR

Point the camera at the computer screen. The preview is **blurred on purpose** (so nobody can read the code off the Vault's screen); scanning works normally.

<figure><img src="https://3674012151-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FT2jyfPJ4rcVavAvTU9nL%2Fuploads%2Fgit-blob-fdf95bb044ce7d431ffe5ba94de0052b858948fd%2F02-vault-scans.png?alt=media" alt="scan request"><figcaption><p>Scanning the extension's request.</p></figcaption></figure>
{% endstep %}

{% step %}

### Keep scanning until complete

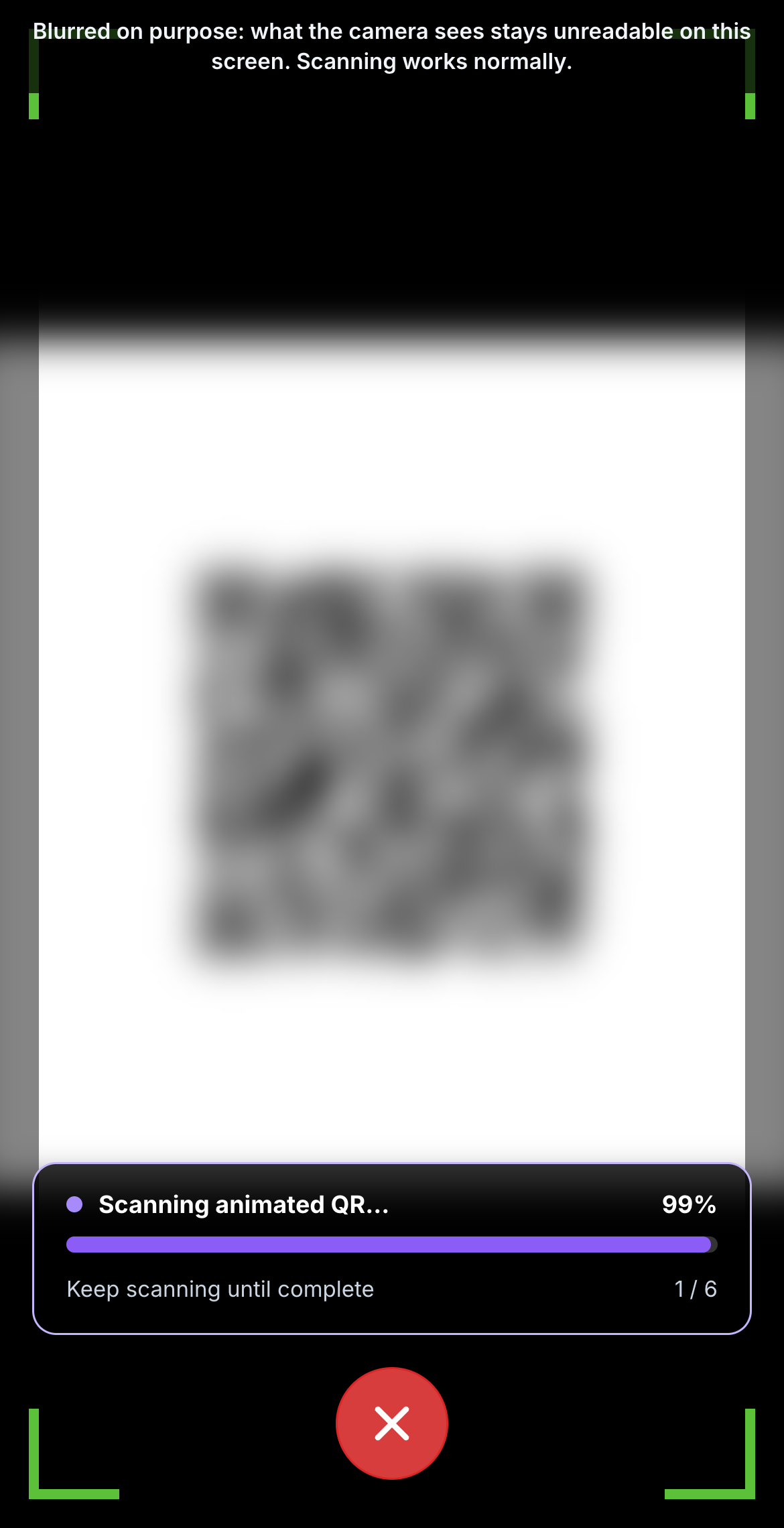

Big requests are split into several frames. The Vault shows **Scanning animated QR… Keep scanning until complete** with a progress count. Hold still until it says **QR code fully scanned**.

<figure><img src="https://3674012151-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FT2jyfPJ4rcVavAvTU9nL%2Fuploads%2Fgit-blob-68df83faa6a9fb0c77606542d34b89bb1ee303c6%2F03-scanning-progress.png?alt=media" alt="scanning progress"><figcaption><p>Progress while the frames are collected.</p></figcaption></figure>
{% endstep %}

{% step %}

### Read the review screen

**Review before signing** shows the request decoded *on this device*: the type of operation, the chain, the recipient, the amount, the fee, and the account that will sign. Compare it with what you asked for on the computer. Tap **Technical details** for the raw fields.

<figure><img src="https://3674012151-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FT2jyfPJ4rcVavAvTU9nL%2Fuploads%2Fgit-blob-721b4ce706c2010b98891cd2048db218eac4d174%2F03-rule-read.png?alt=media" alt="review screen"><figcaption><p>The review screen. This is the moment to read carefully.</p></figcaption></figure>
{% endstep %}

{% step %}

### Check the verdict strip

A colored strip above the details sums up the Vault's own analysis. It has four levels:

* **Green**: *Analyzed on this device - nothing to report.*
* **Grey**: *Analyzed on this device - one call is not decoded here, nothing alarming was found.* The Vault does not know this function, but it did check what matters: *the signing account, the network, the fees, and whether funds or permissions leave your account.* Nothing to tick.
* **Orange**: *review the findings below before signing.* Something is unusual; read the reasons.
* **Red**: *one confirmation is needed before signing, see below.* A proven danger, with a checkbox.

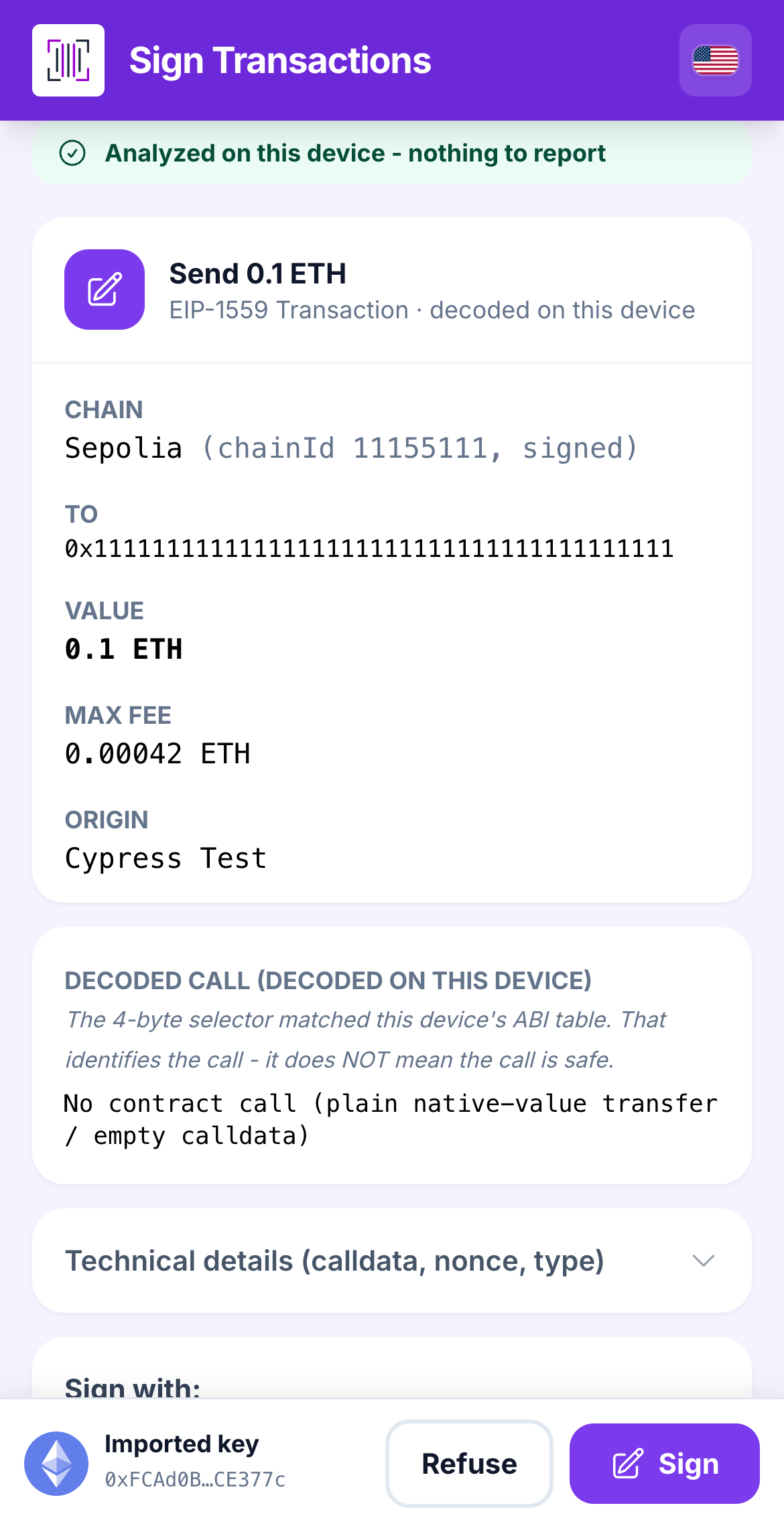

<figure><img src="https://3674012151-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FT2jyfPJ4rcVavAvTU9nL%2Fuploads%2Fgit-blob-2bf3811c21d0de9e28a27fa62d4f9d37aa93a6dd%2F08-sign-bar.png?alt=media" alt="risk verified"><figcaption><p>A green strip: nothing suspicious found.</p></figcaption></figure>

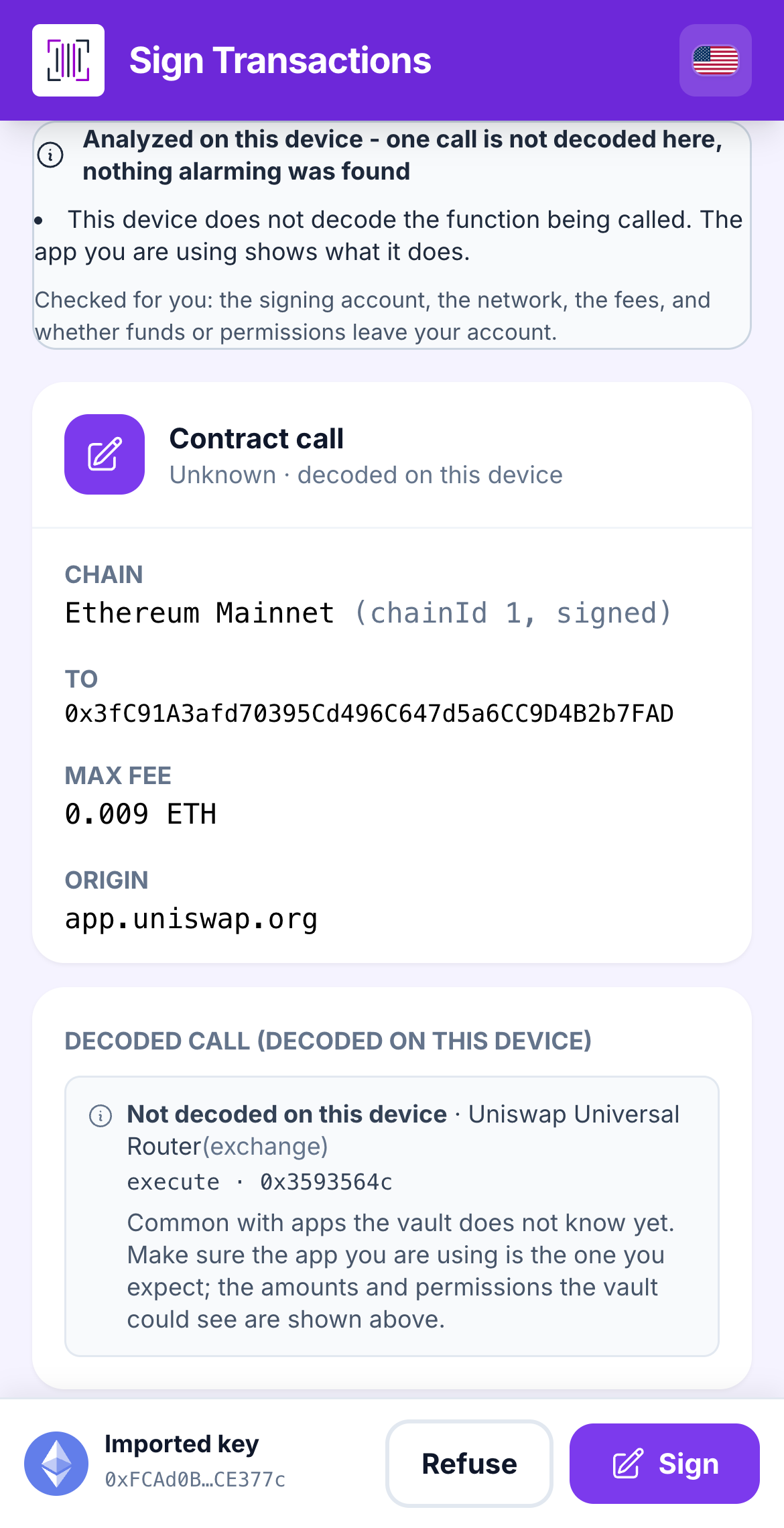

<figure><img src="https://3674012151-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FT2jyfPJ4rcVavAvTU9nL%2Fuploads%2Fgit-blob-f9dfbff500f1830cf955ed0a6eb7b227dead51f6%2F10-risk-unknown.png?alt=media" alt="risk unknown"><figcaption><p>A grey strip: the call is not decoded, but the app being called is named and nothing alarming was found.</p></figcaption></figure>
{% endstep %}

{% step %}

### If it is red: read, then tick the box (or Refuse)

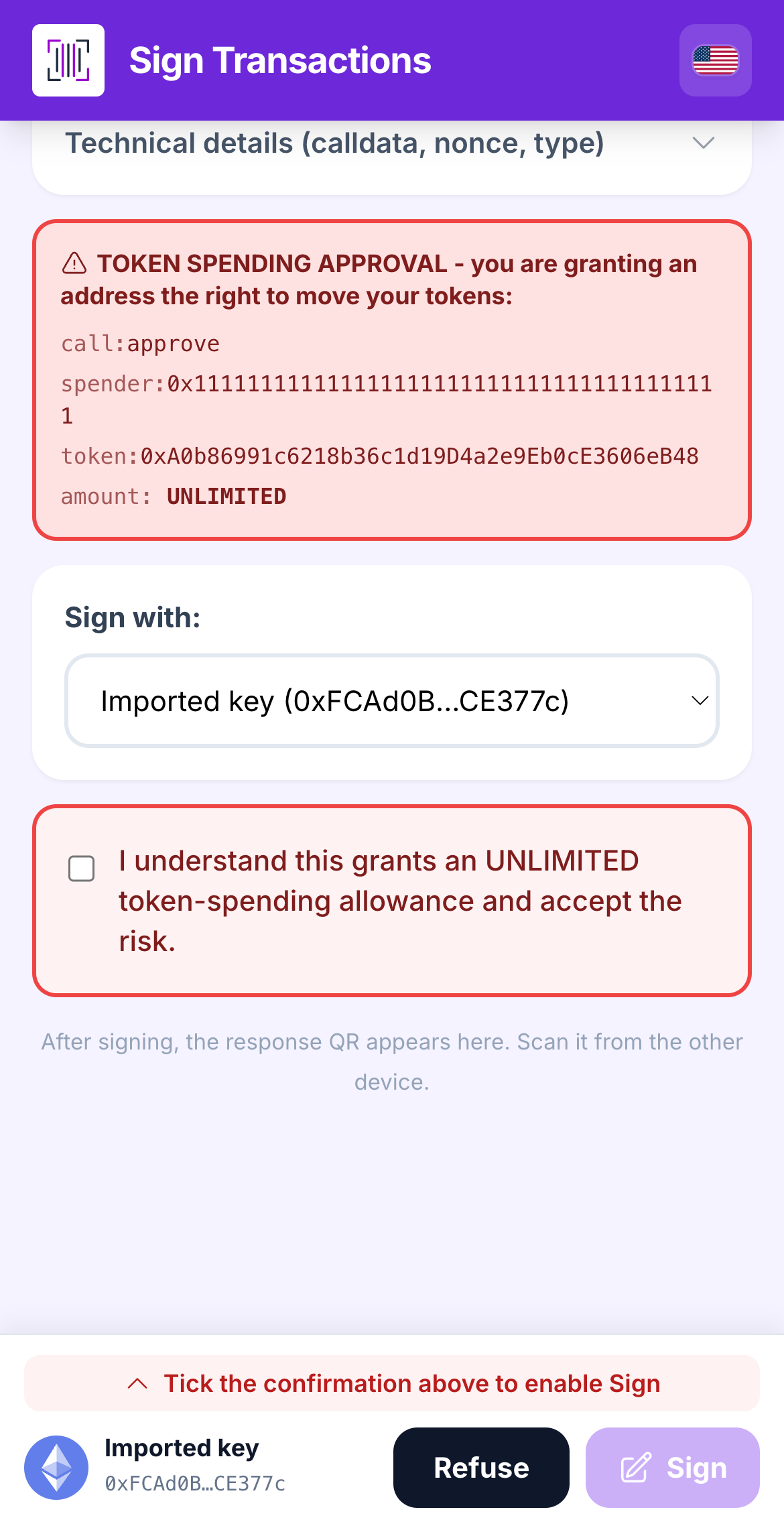

Red means the request does something the Vault has *proven* dangerous: an **unlimited** token approval, handing control of your account to a contract, a smuggled transaction, a Bitcoin fee it cannot verify, and so on. Each warning has its own checkbox such as *I understand this grants an UNLIMITED token-spending allowance and accept the risk.* The **Sign** button stays disabled until you tick them. When in doubt, **Refuse**.

<figure><img src="https://3674012151-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FT2jyfPJ4rcVavAvTU9nL%2Fuploads%2Fgit-blob-be2c42e09e2470e0644e3d05baca0e73bdb07c85%2F06-risk-danger-ack.png?alt=media" alt="risk danger ack"><figcaption><p>A red strip with its acknowledgement box.</p></figcaption></figure>
{% endstep %}

{% step %}

### The sign bar at the bottom

Whatever the chain, a fixed bar stays at the bottom of every review screen, under your thumb, so you never scroll to find the buttons. It shows the **signing account** (chain logo, name, short address, or *N Accounts Selected*), then **Refuse** and **Sign**. Sign lights up only when every checkbox is ticked. When an unticked box is the only thing in the way, the bar says *Tick the confirmation above to enable Sign*: one tap scrolls to it. The bar replaces the bottom navigation while a review is open.

<figure><img src="https://3674012151-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FT2jyfPJ4rcVavAvTU9nL%2Fuploads%2Fgit-blob-2bf3811c21d0de9e28a27fa62d4f9d37aa93a6dd%2F08-sign-bar.png?alt=media" alt="sign bar"><figcaption><p>The sign bar: account, Refuse, Sign.</p></figcaption></figure>

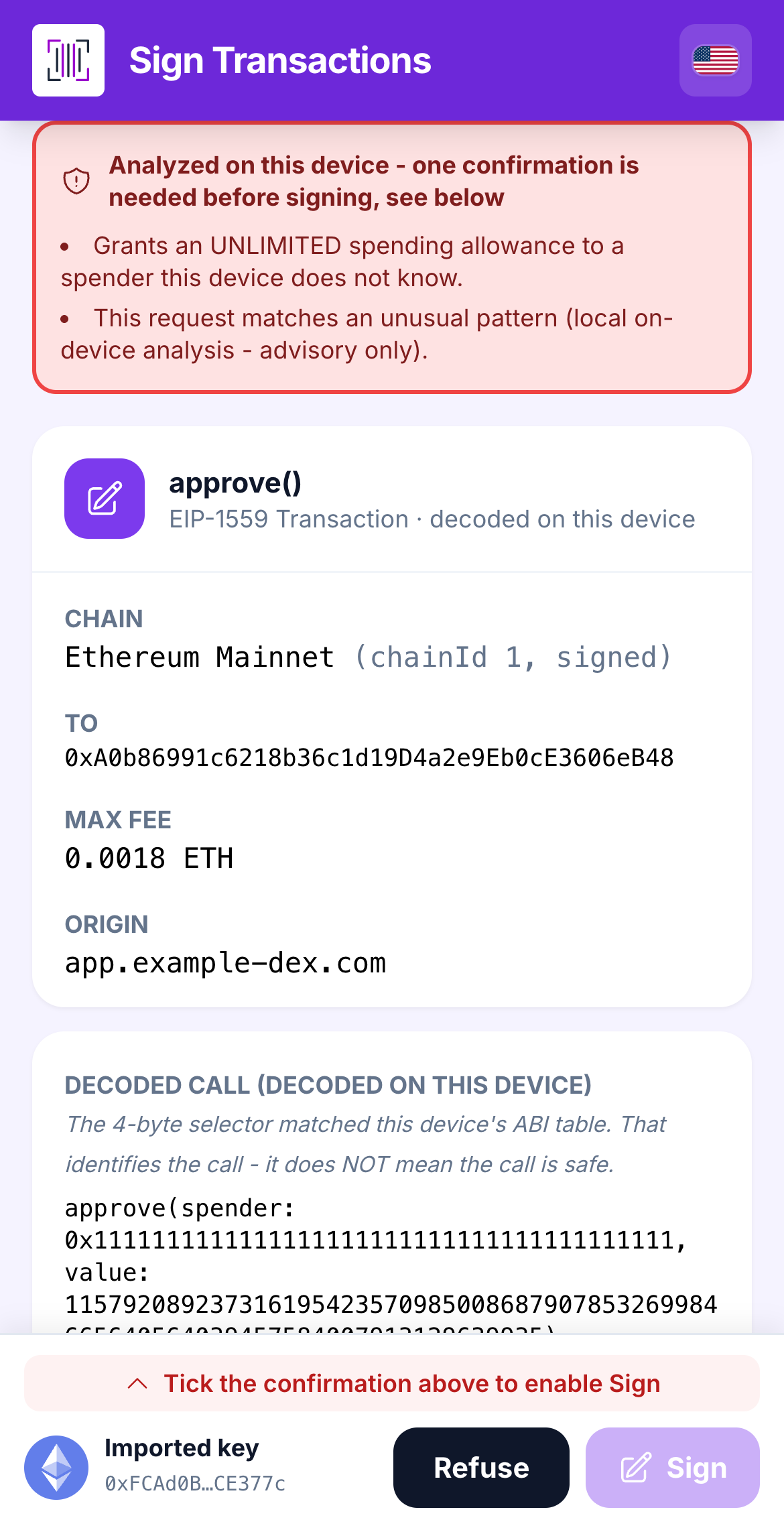

<figure><img src="https://3674012151-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FT2jyfPJ4rcVavAvTU9nL%2Fuploads%2Fgit-blob-49da322adc1bb1f60b0bf449f76ed6d0b42de7da%2F09-gate-hint.png?alt=media" alt="gate hint"><figcaption><p>Sign is greyed out, and the bar says which confirmation is missing.</p></figcaption></figure>
{% endstep %}

{% step %}

### Tap Sign, then show the signed QR

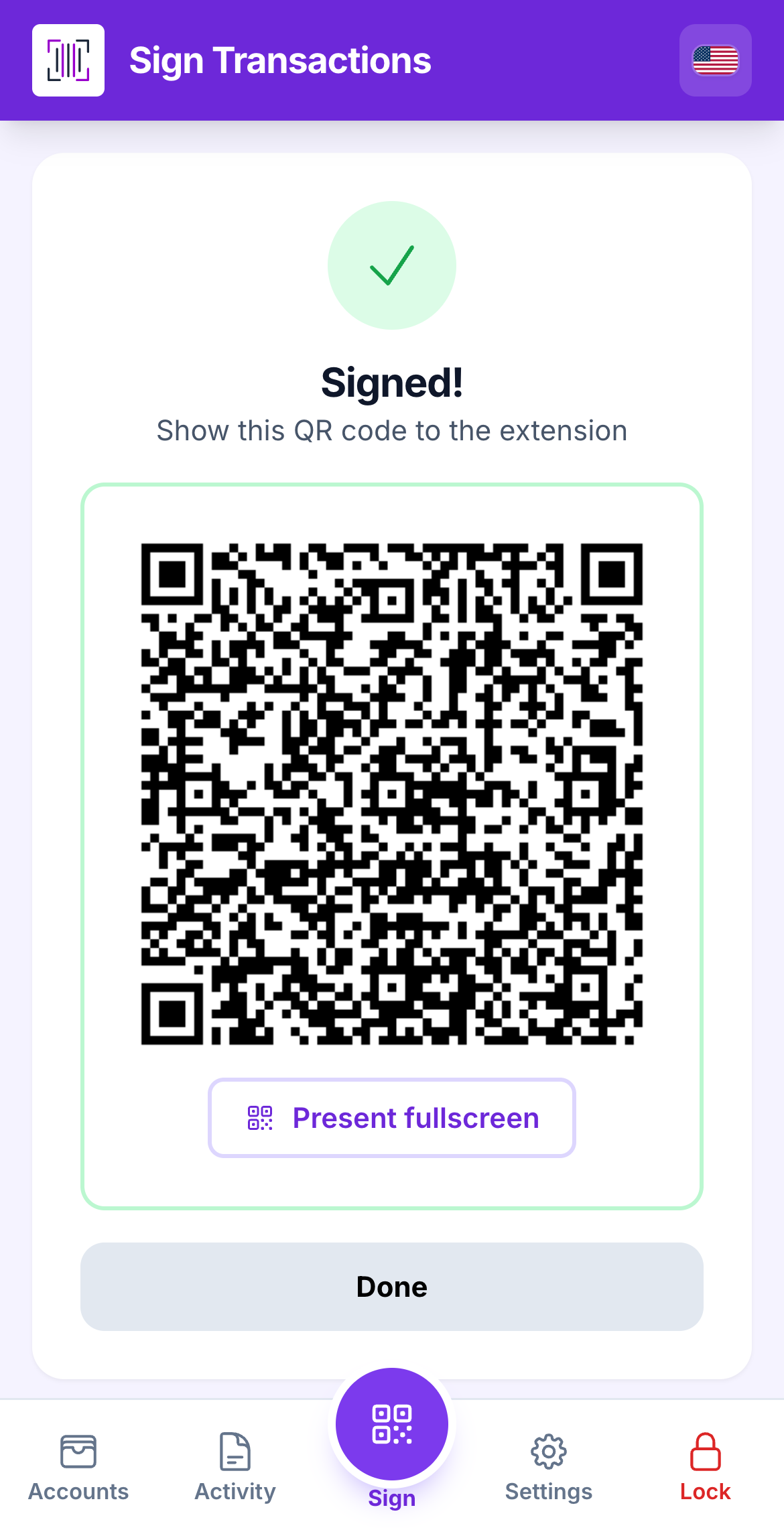

Tap **Sign** and enter your master password if the Vault asks. The screen shows **Signed! Show the QR to the extension.** with the signature as a QR code. Tap **Present fullscreen** to make it bigger.

<figure><img src="https://3674012151-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FT2jyfPJ4rcVavAvTU9nL%2Fuploads%2Fgit-blob-21baf0198aa309545394eacee89ce0b47a80e7be%2F07-signed-qr.png?alt=media" alt="signed qr"><figcaption><p>The signed answer, ready for the webcam.</p></figcaption></figure>

Once the answer is on screen, the round **Sign** button in the bottom bar starts the *next* request straight away: a ceremony whose answer is showing is finished, so the camera opens again with one tap. A review still in progress is never pushed aside that way.
{% endstep %}

{% step %}

### Hold it up to the computer's camera

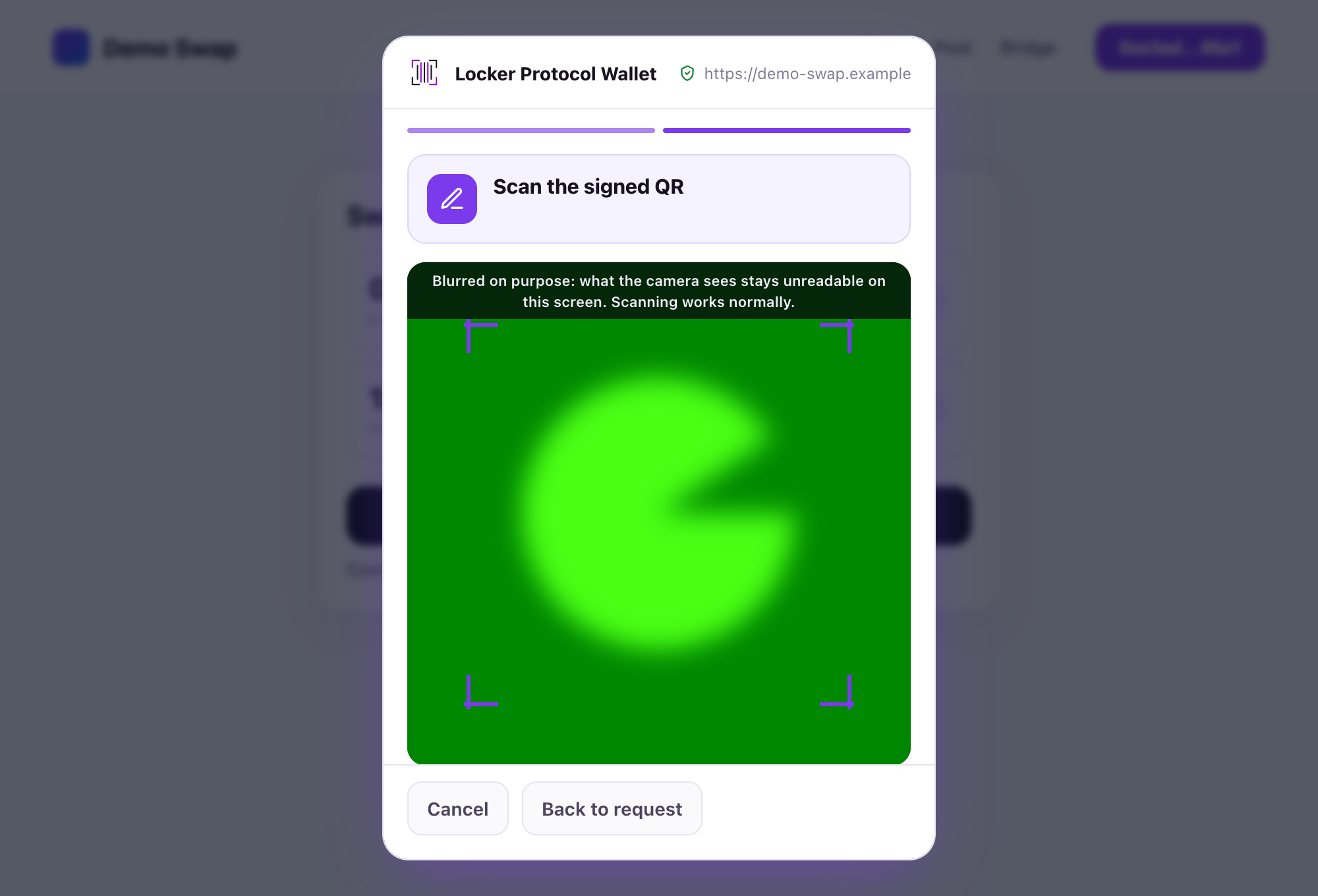

The extension is already waiting with **Scan the signed QR**. Hold the Vault steady in front of the webcam. When the extension has the signature it sends the transaction. Tap **Done** on the Vault.

<figure><img src="https://3674012151-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FT2jyfPJ4rcVavAvTU9nL%2Fuploads%2Fgit-blob-bcb4c92e03e9c9227a85b85a9c9bdfe5510a1bb2%2F07-scan-response.png?alt=media" alt="back to extension"><figcaption><p>The extension reading the signature from the Vault.</p></figcaption></figure>
{% endstep %}
{% endstepper %}

{% hint style="info" %}
**What you see when it worked:** the extension shows a **Submitted** toast and the transaction appears in **Activity**. The Vault adds an entry to its [Signature journal](https://doc.lockerprotocol.com/vault/signature-journal.md).
{% endhint %}

{% hint style="warning" %}
**If something goes wrong**

* *"Address not recognized" / "The requested address is not in your accounts":* the request is for an account this Vault does not have. The Vault refuses. Check you are using the right Vault.
* *"Unsupported QR request type":* the request uses a format this Vault version does not sign. Update the Vault (reconnect once, open it, wait for the offline copy, go back offline).
* *The review does not match what you asked for on the computer:* tap **Refuse**. Something between the website and the extension is wrong; nothing was signed.
* *You tapped Sign but the extension never got it:* show the QR again. A signature can be scanned as many times as needed; it is only valid for this exact request.
  {% endhint %}
